Showcase Home » Yamaha » Grizzly 350 Auto. 4x4 IRS
Model Quick Search

$5,999.00

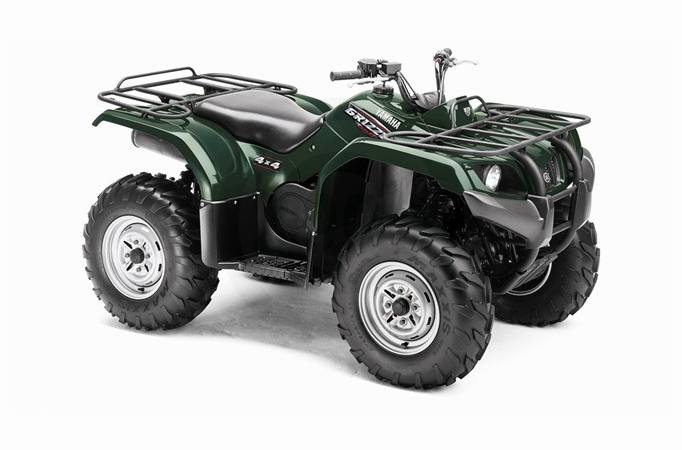

2009 Yamaha Grizzly 350 Auto. 4x4 IRS
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Key Features
    • This full-featured machine has independent rear suspension for excellent terrainability and all-day comfort—a great value.
    • The power-packed, full-featured Grizzly 350 Automatic 4x4 IRS carries a lot of the Grizzly 700’s advanced ATV technology in an affordable package.
    • Class-exclusive fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing, with an automatic centrifugal clutch that maintains constant belt tension for reduced wear, instant response and class-exclusive all-wheel downhill engine braking.
    • Class-exclusive On-Command® 4WD with Diff Lock means switching from 2WD to 4WD is as simple as pushing a handlebar-mounted button.
    • Sealed rear wet brake delivers consistent stopping power in all conditions and is virtually maintenance-free.
    • Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling—even in 4WD.
    • Left-side-mounted F/N/R shift lever is easily accessible.
    • Wide, fully integrated floorboards help keep feet dry, and serrated footpegs provide extra grip in wet conditions.
    • Class-exclusive large-diameter ventilated hydraulic dual front disc brakes provide tremendous stopping power.
    • Grizzly 450-style grab bar provides excellent durability and good looks, too.
    Engine Features
    • Rugged and reliable 348cc air-/oil-cooled, SOHC four-stroke single produces stump-pulling bottom-end power and loves to rev.
    • Semi-oval slide 33mm Mikuni® carburetor and high-output DC-CDI ignition deliver excellent throttle response and engine performance at all rpm.
    • Pushbutton electric starting is backed up by an auxiliary recoil starter.
    • Stainless steel muffler and header design provides superior power characteristics, exhaust sound and unmatched durability.
    • Fully sealed drive case keeps out water and debris to minimize belt slippage, and a no-tools side cover drain makes it a snap to get rid of what little does sneak in.
    • Automatic cam chain tensioner reduces engine maintenance.
    Chassis/Suspension Features
    • Lightweight CAD-designed chassis features outstanding durability with superior rigidity for class-leading agility and handling.
    • Fully independent rear suspension provides fantastic terrainability and a smooth ride.
    • High-tech sealed wet brake means consistent, long-lasting braking performance in all kinds of harsh environments.
    • On-Command® with Diff Lock puts power to all four wheels for true 4WD.
    • 9.6 inches of ground clearance and high-impact plastic skidplate improve maneuverability and undercarriage protection.
    • Direct front shaft drive eliminates U-joint for greater durability and more efficient power transfer when engaged in 4WD.
    • Low seat height for great handling.
    • Independent double-wishbone front suspension features five-way preload-adjustable shocks and 6.3 inches of travel.
    • Aggressive 25x8-12 front and 25x10-12 rear tires further boost ground clearance while providing great traction and responsive handling.
    • Heavy-duty front carry bar and CV joint guards help prevent damage to boot covers.
    Additional Features
    • Steel cargo racks with special, extra-durable wrinkle paint finish feature a combined cargo capacity of 264 pounds (88 front, 176 rear).
    • Front grab bar adds style and functionality.
    • Standard, center-mounted trailer hitch can hook up more than 1100 pounds of payload.
    • Large front and rear fenders with inner guards offer excellent mud/splash protection.
    • Water-resistant, large-capacity underseat storage box provides added convenience.
    • Plush, specially designed seat is widely contoured for incomparable rider comfort.
    • Large-capacity, 3.8-gallon fuel tank has an easy-to-reach petcock valve.
    • Specially designed drive system air intake vent prevents overheating and keeps water and mud from entering drive case.
    • Easy-access, tool-free air filter box.
    • Rear brake/taillight.
    • Maintenance-free 12-amp-hour battery provides reliable cold-weather starting power.
    • Easy-access underseat marine-spec electrical components ensure maximum protection from the elements.
    • Dual, bright, multi-reflector 30-watt Krypton bulb headlights with high and low beams.
    • Easy, handlebar-mounted choke lever.
    • Built in Newnan, GA, USA.
    Engine Specifications
    • Type: 348cc, 4-stroke, air-/oil-cooled single; SOHC
    • Bore x Stroke: 83.0mm x 64.5mm
    • Compression Ratio: 9.2:1
    • Carburetion: Mikuni® 33mm BSR
    • Ignition: DC-CDI
    • Starting System: Electric w/auxiliary pull
    • Transmission: Yamaha Ultramatic® V-belt with all-wheel engine braking/F, N, R
    • Drive Train: Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Chassis Specifications
    • Suspension/Front: Independent double wishbone; 5-way preload adjustment, 6.3-in travel
    • Suspension/Rear: Independent double wishbone; 5-way preload adjustment, 7.1-in travel
    • Brakes/Front: Dual hydraulic discs
    • Brakes/Rear: Sealed wet brake
    • Tires/Front: AT25x8-12
    • Tires/Rear: AT25x10-12
    Dimensions
    • L x W x H: 78.5 x 43.1 x 44.1 in
    • Seat Height: 32.7 in
    • Wheelbase: 48.6 in
    • Turning Radius: 134 in
    • Ground Clearance: 9.6 in
    • Fuel Capacity: 3.8 gal
    • Dry Weight: 578 lbs
    • Rack Capacity: 88 lb Fr./176 lb Rr.
    • Towing Capacity: 1102 lbs.
    Other
    • Instrumentation: Speedometer, odometer
    • Lighting: Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    • Warranty: 6 Month (Limited Factory Warranty)
    • Colors: Steel Blue, Hunter Green, Black Metalic, Realtree® AP HD® Camouflage

    Specifications

    Engine
    Engine Type 4-stroke, air-/oil-cooled single; SOHC
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5 mm
    Cylinders Single
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric w/auxiliary pull
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 7.1 in.
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12
    Dimensions/Capacities
    Dry Weight 578 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1102 lbs
    Fuel Capacity 3.8 gal
    Ground Clearance 9.6 in.
    Machine Dimensions (LxWxH) 78.5 x 43.1 x 44.1 in.
    Wheelbase 48.6 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/F, N, R
    General
    Speedometer Standard
    Odometer Standard
    Lighting Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green, Black Metalic, Realtree® AP HD® Camouflage
    Warranty 6 Month (Limited Factory Warranty)

    Compare Models

    		 Print








    Year 2009
    Manufacturer Yamaha
    Model Grizzly 350 Auto. 4x4 IRS
    Style Utility
    MSRP* $5,999.00
    Chassis
    Front Suspension Independent double wishbone; 5-way preload adjustment
    Front Travel 6.3 in.
    Front Brake Type Dual hydraulic discs
    Front Tires AT25x8-12
    Rear Suspension Independent double wishbone; 5-way preload adjustment
    Rear Travel 7.1 in.
    Rear Brake Type Sealed wet brake
    Rear Tires AT25x10-12
    Frame
    Dimensions/Capacities
    Dry Weight 578 lbs
    Front Rack Capacity 88 lbs
    Rear Rack Capacity 176 lbs
    Towing Capacity 1102 lbs
    Fuel Capacity 3.8 gal
    Ground Clearance 9.6 in.
    Machine Dimensions (LxWxH) 78.5 x 43.1 x 44.1 in.
    Wheelbase 48.6 in.
    Drive Train
    Drive Train Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive
    Final Drive
    Transmission Yamaha Ultramatic® V-belt with all-wheel engine braking/F, N, R
    Engine
    Engine Type 4-stroke, air-/oil-cooled single; SOHC
    Displacement 348 cc
    Bore x Stroke 83.0 x 64.5 mm
    Cylinders Single
    Engine Cooling Air-/oil-cooled
    Fuel System Mikuni® 33 mm BSR
    Starting System Electric w/auxiliary pull
    Alternator
    General
    Speedometer Standard
    Tachometer
    Odometer Standard
    Lighting Dual 30W Krypton multi-reflector headlights & 21W/5W brakelight
    Colors Steel Blue, Hunter Green, Black Metalic, Realtree® AP HD® Camouflage
    Warranty 6 Month (Limited Factory Warranty)
